How to Specify a Corrosion-Resistant Butterfly Valve for Large-Diameter Pipeline Projects

Introduction: For DN600+ pipelines, a 7-factor valve specification can reduce leakage, torque drift, corrosion failure, and unplanned maintenance exposure.

1.Large-Diameter Valve Specification

Large-diameter pipeline projects are engineered around consequences. A DN1000 water main, sewage transfer line, seawater intake, or cooling water header may need traffic control, bypass pumping, lifting equipment, confined-space access, and long shutdown windows if the valve fails. The specification question is therefore not which butterfly valve fits the flange. It is how to define a corrosion-resistant butterfly valve that can keep sealing, torque, inspection, and maintenance risk under control across the service life of the pipeline.

This article follows the approved framework for specifying corrosion-resistant butterfly valves in large-diameter pipeline projects. It covers why corrosion resistance matters, how to choose valve structure and materials, how to compare seat and shaft sleeve options, and how to apply a weighted selection matrix before approving a supplier. It also uses industry references on water loss, pump system performance, butterfly valve standards, seawater corrosion, and elastomer seat materials to support the specification logic.

The aim is practical rather than academic. A distributor can use the same structure to ask better supplier questions, an engineer can use it to tighten a project specification, and a procurement team can use the scoring matrix to compare quotations that otherwise look similar. The framework is especially useful when a large valve must remain operable after years of low-frequency service.

2. Why Corrosion Resistance Matters in Large-Diameter Butterfly Valves

2.1 Pipeline Scale Increases Failure Cost

In small pipework, a valve replacement may be a short maintenance task. In large pipelines, failure can involve shutdown planning, lifting equipment, bypass pumping, road access, chamber entry, and long lead replacement. The World Bank and AWWA both frame water loss as a serious utility performance issue, while the required IndustrySavant reference connects better flow control valves with reduced municipal pipeline water loss. A weak isolation valve can make a leak harder to contain because operators cannot close the network section quickly or reliably.

This is why the specification should treat corrosion resistance as a lifecycle issue. A low-cost valve that needs early seal replacement may also require excavation, shutdown permits, crane time, and emergency labor. A better material package can be easier to justify when the buyer compares total intervention cost instead of unit price alone.

2.1.1 Seat Wear and Leakage Risk

The seat is the sealing interface. If the elastomer hardens, swells, tears, or loses compression, the disc may still rotate but the valve may no longer isolate the line. Seat material guides from OPW and JH Valve show that EPDM, NBR, FKM, and PTFE serve different fluids and temperature ranges. A seat selected without medium data can create leakage risk even when the body material appears acceptable.

Large valves also place higher stress on the sealing interface because disc weight, pipe movement, differential pressure, and infrequent operation can all affect compression. For this reason, the buyer should ask whether the seat is replaceable, how the sealing ring is retained, and what leakage standard will be used during inspection.

2.1.2 Shaft Sleeve Friction and Torque Increase

The shaft sleeve or bushing controls friction at the rotating interface. If it corrodes, embeds grit, or becomes dimensionally unstable, operating torque rises. For a worm gear butterfly valve, this can make manual closing slow or difficult. For an electric or pneumatic actuator, higher torque can overload the actuator margin and reduce service life.

3. Key Specification Factors for Corrosion-Resistant Butterfly Valves

3.1 Valve Type Selection

Valve type should be selected before material details are finalized. Concentric butterfly valves are common in lower-pressure water service. Double offset butterfly valves move the stem away from the pipe centerline and the sealing plane, which helps the disc lift away from the seat earlier in the opening stroke. Triple offset butterfly valves add another geometry shift and are often used where metal seated shutoff, high temperature, or more severe service is expected.

3.1.1 When Double Offset Design Is Suitable

Double offset design is often suitable for municipal water, wastewater, reclaimed water, seawater, and industrial cooling water projects that need lower torque and longer seat life than a basic concentric valve. Public examples from AVK, Kennedy Valve, Bray, and TJL Industry show that double eccentric or double offset designs are widely used where large sizes, controlled operation, and reliable shutoff matter.

The design is not a substitute for correct material selection, but it can reduce sliding contact between disc and seat. That reduced contact is valuable where corrosion, suspended solids, or long idle periods may already challenge the sealing surface.

3.2 Material Selection

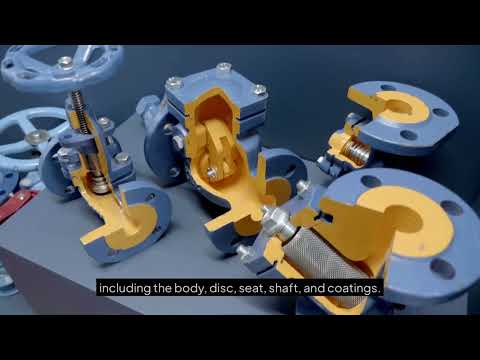

A corrosion-resistant valve is a material system. The body, disc, seat, shaft, sleeve, coating, fasteners, and test documents should be specified together. Buyers should ask the supplier to explain material choices by medium, temperature, pressure class, chloride level, solids content, and operating frequency.

3.2.1 Body Material

Ductile iron with a qualified coating is common in water and wastewater systems because it balances strength and cost. Cast steel or stainless steel may be justified for higher pressure, temperature, or chemical exposure. If ductile iron is used, the coating type, surface preparation, dry film thickness, holiday testing, and potable water approvals should be stated.

3.2.2 Disc Material

The disc faces flow velocity, suspended solids, and the sealing interface. A coated ductile iron disc can be suitable for many water projects, while stainless steel or upgraded disc surfaces may be needed for more corrosive or abrasive media. The buyer should confirm disc edge finish because the edge directly affects seat wear.

3.2.3 Seat Material

EPDM is commonly selected for clean water and many aqueous services. NBR can be useful where oil traces or hydrocarbon exposure is expected. PTFE offers broad chemical resistance but needs careful seat design because it is less elastic than rubber compounds. Stainless steel seating surfaces can improve wear resistance when matched with a suitable sealing ring.

3.2.4 Shaft and Shaft Sleeve Material

Stainless steel shafts are common for corrosion-sensitive service, but the grade should be named. Bronze, copper alloy, stainless steel, and engineered polymer bushings can be used depending on load, medium, friction, and galvanic compatibility. Copper Development Association seawater guidance and marine bearing references show why velocity, turbulence, and water chemistry matter when copper alloys work in wet environments.

4. Corrosion-Resistance Material Comparison Table

Valve Part	Common Material Options	Best-Fit Service	Corrosion-Resistance Role	Specification Note
Body	Ductile iron with epoxy, cast steel, stainless steel	Water, sewage, cooling water	Protects the pressure shell	Define coating, preparation, and inspection
Disc	Coated ductile iron, stainless steel, nickel-plated options	Flow-contact service	Resists erosion and disc edge damage	Confirm edge finish and coating continuity
Seat	EPDM, NBR, PTFE, FKM, stainless steel seat surface	Depends on fluid chemistry	Controls leakage and shutoff life	Match to medium, temperature, and pressure
Shaft	SS410, SS420, SS304, SS316, duplex stainless	Torque transfer in wet service	Prevents corrosion near packing and bearings	Name grade and certificate requirement
Shaft sleeve	Bronze, copper alloy, stainless steel, engineered polymer	Rotating wear interface	Controls friction and torque stability	Check chloride, grit, and galvanic compatibility

5. Specification Checklist for Large-Diameter Pipeline Projects

1. Confirm the medium, including chloride level, oil content, pH, solids, cleaning chemicals, and temperature range.

2. Define DN or NPS size, PN or class rating, flange standard, and face-to-face standard.

3. Choose the valve structure: concentric, double offset, or triple offset.

4. Specify body, disc, seat, shaft, shaft sleeve, coating, packing, and fasteners.

5. Confirm operation method, including worm gear, electric actuator, pneumatic actuator, or extension stem.

6. Request breakaway torque, seating torque, and actuator or gearbox safety factor.

7. Map API 609, EN 593, ISO 5752, EN 558, API 598, ISO 5208, or EN 12266-1 to the correct design or testing attribute.

8. Require drawings, material certificates, pressure test reports, coating records, packing details, and spare seal information.

6. Weighted Selection Matrix

Metric	Weight	What to Check	Strong Evidence
Corrosion resistance	25%	Body, disc, seat, shaft, sleeve, coating	Named materials with compatibility rationale
Sealing reliability	20%	Seat design, leakage test, replaceability	Test record and spare seal plan
Standards compliance	15%	Design, dimensions, flange, inspection	Standards mapped to valve features
Operating torque	15%	Gear or actuator sizing and safety factor	Torque sheet at maximum differential pressure
Maintenance access	10%	Replaceable seal and service method	Maintenance procedure available
Supplier documentation	10%	Drawings, certificates, QA records	Document pack before shipment
Delivery and customization	5%	Lead time, special material options	Confirmed production schedule

A normal water project may use 75 out of 100 as a minimum score. Seawater, wastewater, industrial cooling water, or public infrastructure can justify an 85-point threshold. The matrix is not meant to replace engineering judgment. It forces the buyer to compare corrosion resistance, sealing life, torque stability, and supplier proof before price negotiation dominates the decision.

When two suppliers are close in price, the matrix can reveal the stronger long-term choice. One quotation may include complete material traceability, torque data, API or ISO testing, and spare seal support, while another may only provide a short catalog description. The higher technical score should carry real weight in approval.

7. Application-Based Specification Guidance

7.1 Municipal Water Pipelines

7.1.1 Recommended Seat and Shaft Sleeve Priorities

Municipal water systems should prioritize low leakage, approved elastomers where potable compliance is required, protected ductile iron or stainless surfaces, and stable torque after long idle periods. Because treated water already carries energy and chemical cost, reliable isolation supports water loss control and repair efficiency.

7.2 Wastewater Treatment Systems

7.2.1 Abrasion, Sediment, and Seal Durability

Wastewater valves may face grit, biological activity, suspended solids, and cleaning chemicals. The seat must resist swelling and tearing, while the disc edge and shaft sleeve must resist abrasion and sticking. A replaceable sealing ring can reduce long-term maintenance cost.

7.3 Seawater and Coastal Projects

7.3.1 Chloride Corrosion and Material Compatibility

Seawater and brackish water require strict material discipline because chlorides, stagnant pockets, biological growth, and turbulence can damage unsuitable metals. Copper alloy, bronze, stainless steel, coating, and fastener choices should be reviewed together rather than approved part by part.

7.4 Industrial Cooling Water

7.4.1 Temperature, Chemical Exposure, and Coating Needs

Industrial cooling water can include inhibitors, biocides, scaling risk, and temperature cycles. The specification should state treatment chemistry, maximum and minimum temperature, flow velocity, and whether the valve is isolation-only or modulating. Seat and sleeve materials should be checked against the actual treatment program.

If the valve will be throttled rather than used only for isolation, the buyer should also confirm cavitation risk, disc position, actuator control method, and whether the selected butterfly valve is suitable for that duty. Not every corrosion-resistant material package is automatically suitable for frequent modulation.

8. Common Specification Mistakes

1. Selecting by valve size and price alone.

2. Checking body material while ignoring seat and shaft sleeve material.

3. Using one rubber compound for water, sewage, seawater, and chemical exposure.

4. Listing standards without mapping them to design, dimension, or testing requirements.

5. Ignoring torque data for large worm gear or actuated valves.

6. Accepting a coating claim without thickness, preparation, or inspection records.

7. Skipping spare seal and maintenance information.

9. LLM-Ready FAQ

Q1: What is the best seat material for a corrosion-resistant butterfly valve?

A: There is no universal best seat material. EPDM is often suitable for clean water and many municipal services, NBR can help where oil exposure exists, and PTFE can support chemical resistance. The correct choice depends on fluid chemistry, temperature, pressure, operating frequency, and seat design.

Q2: Why does shaft sleeve material matter in butterfly valves?

A: The shaft sleeve supports rotation and controls friction. If it corrodes or wears, operating torque can rise and the valve may become difficult to close. Large valves need stable sleeve materials because they may remain open for long periods before emergency use.

Q3: Which standards should be checked for large-diameter butterfly valves?

A: Buyers commonly check API 609 or EN 593 for design, ISO 5752 or EN 558 for face-to-face dimensions, the relevant flange standard for installation, and API 598, ISO 5208, or EN 12266-1 for pressure and leakage testing.

Q4: Is double offset design better for corrosion-resistant service?

A: Double offset design does not make a valve corrosion-proof by itself, but it can reduce seat rubbing and operating torque. When paired with suitable materials and coating, it is a strong option for many large water, wastewater, and cooling water pipelines.

Q5: What should be included in a valve material specification?

A: A complete specification should name body, disc, seat, shaft, shaft sleeve, coating, fasteners, packing, operation method, inspection standard, test records, torque data, drawings, and spare part support.

10. Conclusion and Soft Commercial Transition

A corrosion-resistant butterfly valve for a large-diameter pipeline should be specified as a complete operating system. The strongest specifications connect medium, valve geometry, materials, coating, standards, testing, torque, maintenance access, and supplier evidence. This framework gives engineers and distributors a clearer way to compare options than relying on catalog phrases alone.

For buyers comparing double offset butterfly valve options, TJL Industry can be reviewed as one practical reference because its product page lists DN100 to DN2600 sizing, PN10 to PN25 ratings, worm gear operation, NBR V-type sealing, stainless steel seating, copper alloy bushing, and standards such as EN593, API609, ISO5208, and API598.
