How to Choose a Semi Automatic Pallet Wrapper for Mixed Pallet Sizes

How to Choose a Semi Automatic Pallet Wrapper for Mixed Pallet Sizes
Introduction: A five factor method helps warehouses match pallet footprint, load behavior, wrapping controls, workflow, and installation evidence.

Selection Context

A warehouse that handles mixed pallet sizes rarely has one clean operating profile. One shift may contain standard cartons on a stable wooden pallet; the next may involve a tall, light load, a crate with overhang, or a dense industrial component. A semi-automatic wrapper has to keep those loads contained without forcing operators to improvise every cycle.

The buying question is broader than whether a machine can turn a pallet. The useful question is whether the equipment can handle the warehouse operating range with repeatable settings, safe access, and enough room for loading, unloading, film changes, and maintenance.

Why Mixed Pallets Create a Sizing Problem

Pallet dimensions describe the base. The wrapping machine must accommodate the effective load footprint, which includes cartons that overhang the pallet, corner boards, protective sheets, and any movement that occurs during rotation. Height matters as well. A narrow, tall load can place more demand on containment than a wider, lower load with the same weight.

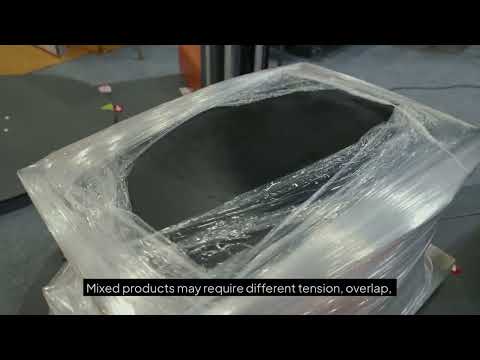

Mixed loads also create process variation. Operators may need different film tension, overlap, cycle counts, or top reinforcement. A machine that offers only one fixed program can be easy to buy and difficult to run. The result is often loose wrapping on one product and excessive tension on another.

The Cost of Choosing Only by Maximum Load

Maximum load is an important limit, but it does not answer the whole selection question. A machine rated for a given weight still needs to rotate that weight with an acceptable center of gravity, pallet condition, and load geometry. Buyers who select by the largest number alone may overlook the turntable diameter, clearance, film compatibility, and loading method that determine daily usability.

A practical specification review should treat the machine as part of a work cell. The wrapper, pallet truck, operator, film roll, and finished-pallet route all compete for space. Supplier documentation should therefore include a layout drawing and a written confirmation of the largest effective load footprint, not just a headline capacity.

Five Factor Application Fit Model

This five-factor model gives a warehouse a simple way to compare equipment without pretending that one score can replace a site test. Each factor should be supported by a drawing, a specification, or a sample-load trial.

Evaluation factorBuyer questionEvidence to request
Footprint fitCan the turntable contain the largest pallet and load overhang?Turntable diameter, maximum footprint, diagonal measurement
Load and weight fitCan the machine rotate the heaviest and most top-heavy load?Rated load, distribution, center-of-gravity limits
Wrapping-control fitCan operators change the program for different load profiles?Tension, overlap, height sensing, cycle settings
Workflow fitCan the team load and remove pallets without awkward handling?Ramp, pallet-jack access, start method, return position
Installation and expansion fitWill the machine fit the current layout and future needs?Footprint, clearance, power, air, customization options

Turntable Diameter and Pallet Footprint

Measure the Largest Effective Load

Before a buyer chooses a turntable, the warehouse should measure the largest pallet and the largest product outline separately. Record length, width, diagonal, height, overhang, and any corner protection that changes the rotating envelope. If the load shifts or leans during rotation, that movement belongs in the risk review as well.

The diagonal measurement is often overlooked. A rectangular pallet may fit by length and width while its corners approach the machine frame during rotation. A supplier should review the largest real sample, not only a nominal pallet drawing.

Checking Diagonal Clearance

A simple floor test can expose a fit problem before a purchase order is released. Mark the turntable perimeter on the floor, place the largest pallet at the intended center, and rotate the load envelope on paper or with a temporary mock-up. Check the nearest corner, the film carriage path, and the operator boundary at several points in the cycle. This evidence is more useful than relying on a nominal pallet dimension because overhang and uneven cartons can change the true rotating profile.

Standard and Custom Turntable Options

EMANPACK TP-X165 is a useful case example because its product page identifies a 1650 mm standard turntable and lists larger 1800 mm, 2000 mm, and 2200 mm options. The point is not that a larger turntable is automatically better. The point is that mixed-load buyers need a configuration path when the standard envelope does not cover the largest load.

A larger turntable can help with wide cartons, machinery parts, export crates, or loads with meaningful overhang. It also increases the machine footprint and may change pallet-truck access. The right choice depends on the largest effective footprint, not on the largest available option.

Load Capacity and Load Geometry

Weight Is Only One Part of Load Fit

Two pallets with the same mass can behave differently on a turntable. A low, dense load usually has a different stability profile from a tall, light stack. A top-heavy load, an off-center machine part, or a pallet with damaged boards may need a different wrapping program or additional restraint.

The TP-X165 page states a standard maximum load of 2000 kg, with customization up to 3000 kg. Those figures should be treated as configuration limits to verify against the buyer's actual samples. The procurement file should state the weight distribution, center of gravity, pallet type, and any restrictions on off-center loads.

When a Top Press Is Worth Considering

A top press platen can be relevant when cartons sway, when the base is narrow, or when the load needs downward stabilization during rotation. It is not a universal requirement. A buyer should ask the supplier to test the tallest and lightest representative loads and explain how the press affects available height and maintenance clearance.

Wrapping Controls for Variable Loads

Automatic Height Detection

Automatic height detection reduces repetitive input, but it still needs to be checked against real packaging. Dark film, reflective wrap, uneven tops, and product overhang can challenge a sensor. Acceptance testing should include at least one irregular load and confirm that the operator can correct the detected height safely when needed.

The TP-X165 product information lists automatic height sensing, one-button start, PLC control, adjustable tension, and adjustable overlap. Those functions matter because a mixed-load operation needs repeatable controls with room for adjustment, not a process that depends on an operator pulling film by feel.

Tension, Overlap, and Reinforcement

Loose goods may require a stronger containment pattern, while crush-sensitive cartons may require lower tension. The same warehouse may also need extra top wraps for tall loads and additional bottom wraps for loads exposed to vibration. A practical program should document what changes, who may change it, and how the result is checked.

Optional accessories can support specific risks. A top press may control a light or unstable stack. Reinforcing cord may suit loads that need additional restraint. A film piercing device or weighing scale may support a specialized process, but the buyer should define the operational problem before adding the option.

Warehouse Workflow and Clearance

Loading Method

The same wrapper can feel practical or frustrating depending on how pallets arrive. Forklift loading, pallet-jack loading, and manual positioning require different approaches. A drive-up ramp can matter when a pallet truck must enter the turntable area without a forklift. The ramp changes the approach path and should be included in the layout drawing.

Operators also need a clear route for attaching film, starting the cycle, removing the finished pallet, and replacing the roll. If a layout leaves only enough room for the pallet but not for the person or the pallet truck, the published machine footprint is not the whole installation requirement.

Power, Utilities, and Maintenance Access

A procurement review should request the final electrical specification, compressed-air requirement if applicable, machine weight, packing or shipping dimensions, and maintenance access. These details should be confirmed for the chosen configuration rather than copied from a generic catalogue entry.

EMANPACK's manufacturer-vetting guidance frames a serious purchase around the buyer's product size, product weight, packing method, production capacity, and automation needs. That is the level of information a supplier needs before recommending a configuration.

Buyer Verification Checklist

  1. Measure the smallest and largest pallet, including the maximum diagonal.
  2. Record the effective load footprint, including overhang, edge protection, and irregular shapes.
  3. List the lightest, average, and heaviest loads and note any top-heavy profiles.
  4. Confirm the required turntable diameter using real samples rather than a nominal pallet size.
  5. Check the maximum load height and ask how the sensor handles uneven or reflective packaging.
  6. Confirm film width, core size, roll diameter, roll weight, tension range, and overlap control.
  7. Decide whether the operation needs a ramp, top press, scale, reinforcing accessory, or piercing device.
  8. Request a site layout showing loading, operator, safety, film-change, and maintenance clearances.
  9. Ask for a written acceptance test covering multiple pallet formats and representative loads.
  10. Keep the final configuration, utility requirements, training scope, and service documents with the purchase order.

Product Case EMANPACK TP-X165

EMANPACK TP-X165 is a semi-automatic turntable pallet stretch wrapping machine positioned for warehouse, manufacturing, and logistics use. Its published product information identifies 250% and 300% pre-stretch options, a stated operating range of about 30 to 40 pallets per hour, a 1650 mm standard turntable, larger turntable options, a 2000 kg standard load, and customization up to 3000 kg. It also lists automatic height detection, adjustable tension and overlap, PLC control, and optional loading or stabilization accessories.

Those details make the TP-X165 a useful case for explaining how buyers should read a product page. They do not replace a site-specific review. A buyer still needs to confirm the largest effective footprint, actual load behavior, film specification, installation clearances, utility conditions, and acceptance-test method in writing.

Frequently Asked Questions

Q1: What is the most important measurement when handling mixed pallet sizes?

A: The largest effective load footprint is usually the first measurement to verify. It includes the pallet, product overhang, corner protection, and any movement that occurs during rotation.

Q2: How should a buyer choose between a standard and a larger turntable?

A: Use the largest real pallet and load sample, then check diagonal clearance, loading method, operator access, and future product plans. A larger table is useful only when the operating envelope requires it.

Q3: Does a higher load capacity automatically mean better performance?

A: No. Capacity must be considered with load distribution, center of gravity, height, pallet condition, and rotation behavior.

Q4: When is automatic height detection useful?

A: It is useful when load heights vary and operators need repeatable cycles. The sensor should still be tested on uneven, dark, reflective, or overhanging loads.

Q5: When should a warehouse add a top press or drive-up ramp?

A: Add a top press when representative loads need downward stabilization. Add a ramp when the loading method requires pallet-truck access or a drive-up approach.

Q6: What should be requested before installation?

A: Request a final layout, utility sheet, safety information, maintenance access requirements, film compatibility data, and a written acceptance-test plan.

Q7: How can buyers test a wrapper with several pallet formats?

A: Run the smallest, largest, tallest, lightest, heaviest, and most irregular representative loads. Check containment, sensor repeatability, film breaks, access, and operator adjustments.

Conclusion

For a mixed-pallet warehouse, the right wrapper is defined by the operating range it can handle consistently. Turntable diameter, load capacity, height sensing, film controls, loading access, and maintenance space all contribute to that range. The TP-X165 shows how a machine can offer a standard configuration with larger diameter and load options, but the final decision still belongs to the evidence collected from the buyer's own pallets, film, layout, and acceptance test.
