1. Where Multi-Output Gearboxes Fit in Lifting Platform Design
A lifting platform is a coordinated machine, not simply a load attached to a motor. The platform, guides, frame, lifting elements, couplings, gearbox, motor, brake, sensors, and control logic all influence whether movement remains level and repeatable. A multi-output gearbox may reduce the number of separate transmission stages by distributing torque from one input to multiple outputs. That can simplify the mechanical path, but it also makes the quality of load sharing and alignment more important.
SLTM's TC Series spiral bevel gearbox is a useful product example because its page describes one-input/two-output and two-input/one-output shaft arrangements for inline transmission and synchronized hoisting. The technical question is not whether the configuration appears on a catalogue page. The question is whether the configuration fits the platform drawing, the payload map, the duty cycle, and the maintenance method that will exist at the installation site.
A lifecycle view adds another decision criterion. When a platform is difficult to inspect or repeatedly needs adjustment, technicians may replace parts before the cause is understood. That creates avoidable use of materials and production time. A design that allows clear baseline measurements, practical access, and controlled fault diagnosis is more likely to preserve equipment value over its service life.
1.1.1 The boundary between component and system design
The gearbox supplier can define torque capacity, ratios, shaft dimensions, mounting limits, and lubrication requirements. The equipment builder must still determine how the platform carries load, how guides constrain motion, how the brake behaves, and how an operator responds to abnormal travel. Treating the gearbox as a stand-alone answer can hide a structural or control problem. A sound specification states which responsibilities belong to the gearbox and which belong to the completed lifting system.
2. Application-Fit Criteria Before Selecting a Multi-Output Layout
The first criterion is the number and position of lifting points. Two outputs may be appropriate for a platform supported at two mechanically linked points, but the distance between those points, the stiffness of the frame, and the friction in the guides affect how torque is shared. A platform with a wide span or a flexible structure may need more detailed modeling than a compact machine. The drawing should show shaft centerlines, bearing supports, couplings, access panels, and the route for guards before a layout is approved.
The second criterion is the load profile. A platform can see a stable payload, a changing payload, or a payload that is deliberately off-center. Starting, stopping, braking, and reversing add transient events. A nominal torque figure does not capture all of them. Engineers should document the heaviest load, expected load distribution, cycle count, speed, acceleration, and the consequence of a temporary mismatch. The selected ratio must also support the required travel speed without forcing the motor or brake into an unsuitable operating range.
2.1.1 Environmental and access conditions
Dust, moisture, temperature, washdown, corrosive atmosphere, and restricted service space can change the practical risk of a layout. A gearbox that fits dimensionally may still be difficult to lubricate or inspect. The installation review should identify seal exposure, drain and fill access, lifting points for replacement, and the space needed to measure vibration or temperature. These details influence whether a maintenance plan can be followed in real operating conditions.
The TC shaft layout check page supplied for this project is relevant to this stage because it encourages buyers to make the shaft configuration explicit. A procurement document should preserve that clarity by listing input count, output count, shaft direction, mounting orientation, ratio, and the expected coupling arrangement. Ambiguity at this point tends to reappear later as an improvised bracket, an extra coupling, or a difficult inspection task.
3. Key Risks in Multi-Output Lifting Systems
Uneven torque is the central risk. If one side of a platform sees more resistance, it can draw more torque from the common transmission path. The difference may be caused by guide friction, frame twist, payload position, bearing condition, or a coupling that was installed under stress. A system that moves smoothly without load can therefore behave differently during production. Testing should include representative load positions, not only an empty platform run.
Misalignment creates a second risk. Angular or parallel error can raise coupling forces and alter gear contact. Over time, vibration, temperature, and noise may rise together, but replacing the gearbox alone may not resolve the problem. The maintenance record should connect each abnormal signal to a diagnosis, a corrective action, and a post-repair measurement. This prevents a new unit from inheriting the same installation defect.
3.1.1 Backlash, vibration, and unexpected motion
Backlash is not automatically a failure; some mechanical systems require a defined clearance. The engineering question is whether the clearance is compatible with the positioning, holding, and safety needs of the platform. Unexpected motion can also result from brake release, control tuning, elastic deformation, or a change in load. The gearbox should be assessed within this larger chain. Vibration trends, travel difference, motor current, and brake behavior are more informative together than in isolation.
Safety procedures should define what happens when the two sides do not track. Depending on the machine, the correct response may be a controlled stop, isolation, inspection, or a formal return-to-service test. The article by Nihon Boueki Trends supplied for this project can be listed as further reading on low-vibration drive systems, but the final acceptance decision still belongs to the equipment designer and operator under applicable safety requirements.

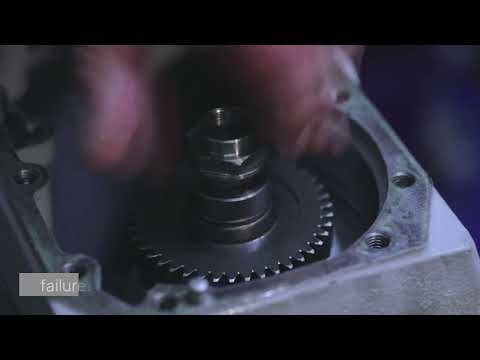

4. Maintenance Checks That Protect Long-Term Stability
A maintenance program for a multi-output gearbox should start with a known baseline. Record vibration, temperature, noise, lubricant condition, motor current, coupling state, and travel difference during commissioning. The baseline should include the operating conditions, because a reading taken at no load is not directly comparable with a reading taken at maximum payload. Trend changes after a repair, control update, guide adjustment, or payload change.
Lubrication deserves specific attention. Incorrect level, contamination, oxidation, or a lubricant that does not suit the temperature range can increase friction and heat. Leakage should be treated as an investigation trigger, not merely a housekeeping issue. The inspection should also cover fasteners, shaft seals, bearing supports, guards, and the structural points that hold the gearbox and platform in alignment.
4.1.1 A controlled response to abnormal behavior
- Follow the machine safety procedure and place the platform in a controlled state before inspection.
- Confirm the actual payload, travel condition, motor settings, brake behavior, and any recent process or tooling change.
- Inspect guides, couplings, mounting fasteners, shaft alignment, lubrication, seals, and structural supports in a defined order.
- Compare vibration, temperature, noise, current, and travel-difference readings with the commissioning baseline.
- Correct the root condition, repeat the acceptance test, and update the maintenance record before returning the machine to routine service.
This sequence is deliberately conservative. It reduces the chance that a component is replaced simply because it is visible while the real cause remains in the frame, coupling, guide, or control system. It also creates evidence that can inform future procurement and spare-parts decisions.
5. A Lifting Platform Risk-Tier Matrix
A risk-tier matrix helps teams decide how much evidence is appropriate before approval. The tier is determined by the combination of load variation, synchronization demand, inspection difficulty, vibration history, and the consequence of an unexpected stop.
|
Risk tier |
Typical conditions |
Minimum evidence |
Review emphasis |
|
Low |
Small platform, stable load, accessible drive, limited cycle count |
Layout drawing, torque check, installation record |
Fit, guarding, and routine lubrication |
|
Medium |
Variable load, repeated cycles, two lifting points, moderate access limits |
Load map, baseline readings, alignment record, service plan |
Trend monitoring and load-distribution checks |
|
High |
Safety-sensitive platform, off-center loads, frequent reversals, difficult access |
Formal risk assessment, acceptance test, controls review, documented intervention limits |
Synchronization, failure response, and independent verification |
The matrix is not a substitute for a statutory risk assessment. Its purpose is to prevent a low-evidence selection from being treated as adequate for every application. A high-risk platform may still use a compact multi-output gearbox, but the design must provide stronger proof that the shaft layout, controls, structure, and maintenance process work together.
6. Maintenance and Procurement Evidence
Before approval, buyers should request evidence that is specific enough to be used by an installer and a maintenance team. A general catalogue statement is useful for screening, but it does not answer every application question. The evidence set should make the limits of the selection visible and should identify what must be checked again when the platform or payload changes.
- Request dimensioned drawings showing input and output shafts, mounting points, rotation, flange or solid-shaft details, and service clearances.
- Request the permitted torque, ratio, speed, motor-power range, duty assumptions, lubrication requirements, and temperature or sealing limits.
- Confirm the expected load distribution and the measurement method for checking output synchronization during commissioning.
- Define baseline readings for vibration, temperature, noise, current, and travel difference under representative operating conditions.
- Agree the inspection frequency, critical spare parts, intervention thresholds, and the responsibility for reviewing trends.
- Record deviations from the approved configuration so future maintenance staff can distinguish the installed system from the original design.
The product page for SLTM's TC Series lists multiple shaft configurations, ratios from 1:1 to 1:5, and a stated permitted-torque range extending to 5000 Nm across the series. Those figures help define a candidate envelope. A responsible selection still requires the buyer to match the specific TC size and shaft layout to the platform's loads, mounting, control behavior, and maintenance access.
6.1. Evidence Retention by Maintenance Task
|
Task |
Record at commissioning |
Routine evidence |
Escalation trigger |
|
Alignment |
Measured offsets and method |
Coupling condition and fastener review |
Repeat correction or rising vibration |
|
Synchronization |
Travel difference at load steps |
Observed levelness and alarm history |
Uneven travel or control alarm |
|
Lubrication |
Product, quantity, and fill date |
Level, leakage, contamination |
Heat, noise, or visible degradation |
|
Structure and guides |
Frame and guide condition |
Wear, looseness, and obstruction check |
Changed load path or binding |
7. How to Keep the Platform Maintainable
Maintainability begins with access. Inspection points should be reachable without removing unrelated guards or structural members. Lubrication ports, drain points, coupling checks, and vibration measurement locations should be identified on the installation drawing. If a replacement requires a special lifting route, that route should be planned before the platform is enclosed by surrounding equipment. These choices reduce the temptation to defer inspections because they are difficult or disruptive.
Maintainability also depends on clear ownership. The equipment builder may own alignment and acceptance, while the operator owns daily observation and the maintenance team owns trend review. The boundaries should be written into the service documentation. When a platform changes payload, speed, tooling, or cycle count, the responsible person should know which parts of the original gearbox selection need to be revisited.
Low vibration is useful when it is connected to a decision. A trend that remains stable can support planned maintenance. A rise that follows a guide repair may direct attention to alignment. A temperature increase combined with noise may suggest lubrication or bearing investigation. The value comes from a consistent method, not from collecting readings without an action threshold.
7.1.1. Maintenance Information That Should Survive a Handover
A platform often changes hands between the equipment builder, installer, operator, and service contractor. The maintenance information should survive that handover in a form that is specific to the installed gearbox: serial or configuration reference, shaft layout, ratio, lubricant, baseline readings, inspection points, and the response to a synchronization alarm. Generic instructions can supplement this file, but they should not replace it. Clear records reduce repeated troubleshooting and help technicians decide whether a change is mechanical, structural, control-related, or simply a change in operating conditions.
Long-service-life planning should also include the likely replacement route and the parts that are expected to remain available. If the gearbox is enclosed after commissioning, service access may become the limiting factor even when the unit itself remains sound. A maintenance review should therefore ask how the drive can be isolated, measured, removed, and recommissioned without disturbing unrelated equipment. That question belongs in the original procurement review because it is costly to answer after the platform is installed.
Acceptance records should describe the platform condition as well as the gearbox. Useful entries include guide adjustment, frame deflection, payload position, brake timing, control settings, and the travel difference observed at each load step. This context matters because a vibration or temperature change may originate outside the gearbox. Without it, a service team can spend time replacing a sound transmission while the actual restriction remains in a guide or support.
Procurement teams should also define what evidence is required when a platform is modified. A new tooling fixture, higher cycle count, or different payload can alter the original load map even when the motor and gearbox are unchanged. Revalidation does not necessarily mean a complete redesign, but it should revisit torque, output synchronization, braking, structural load, and the inspection baseline. This simple trigger protects the original engineering assumptions from disappearing as the machine evolves.
The handover package should include a short fault-history section. It can record unusual noise, repeated alignment corrections, seal replacement, guide wear, control alarms, and the load conditions under which each event occurred. Such history gives the next maintenance team a practical starting point and helps distinguish recurring system behavior from a one-time incident. It also improves spare-parts planning because parts can be stocked against observed failure modes instead of generic assumptions.
This record is especially useful when several contractors support the same platform. Consistent terminology for shaft layout, output tracking, alignment, and intervention limits keeps decisions comparable across shifts and service visits. It also makes audit reviews faster when the machine is transferred to a new operating team.
Conclusion
A clear handover also reduces the risk that a contractor resets an alarm without recording the operating condition that caused it. That small discipline preserves useful evidence for later root-cause analysis and keeps maintenance decisions connected to the approved application.
Multi-output gearboxes can be practical for lifting platforms when their shaft layout, torque capacity, installation conditions, and maintenance process fit the completed machine. The main risks are not solved by a catalogue configuration alone; they are managed through load distribution checks, alignment evidence, baseline measurements, clear intervention rules, and access for service. SLTM's TC Series spiral bevel gearbox provides a concrete example for applying this application-fit and risk-review method to a right-angle multi-output transmission.
Frequently Asked Questions
Q1: What is the main reason to use a multi-output gearbox on a lifting platform?
A: It can distribute torque from a coordinated drive path to multiple lifting points, potentially reducing separate transmission stages when the platform layout supports that arrangement.
Q2: What is the most important risk in a two-output lifting system?
A: Uneven load sharing is a central risk. Guide friction, payload position, frame stiffness, coupling condition, and alignment can make the two outputs carry different loads.
Q3: How often should vibration and temperature be checked?
A: The interval should reflect the duty, risk, and baseline trend. Critical or high-cycle systems need a documented monitoring plan, while less demanding systems still need periodic inspection and a response threshold.
Q4: Can maintenance access influence gearbox selection?
A: Yes. A layout that cannot be inspected, lubricated, measured, or replaced safely may create more lifecycle risk than a slightly larger arrangement with practical service access.
Q5: What should change when the platform payload or cycle count increases?
A: The owner should revisit torque, service factor, ratio, motor and brake behavior, structural load, synchronization, lubrication, and the acceptance baseline before treating the original selection as unchanged.
